Installation [12/2019 - ]: Procedure

1. Temporarily install the rear upper control arm assembly LH to the rear suspension member sub-assembly with the bolt and nut.
   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • Insert the bolt with the threaded end facing the rear of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

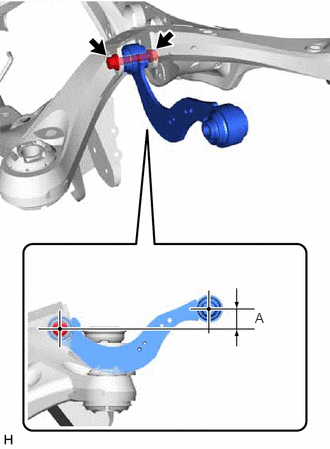

2. Position the rear upper control arm assembly LH as shown in the illustration.

   Standard Length (A)

   13.2 mm (0.520 in.)

3. Fully tighten the bolt.

   Torque: 125 N.m (1275 kgf/cm, 92 ft.lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

HINT:

Perform the same procedure as for the LH side.
