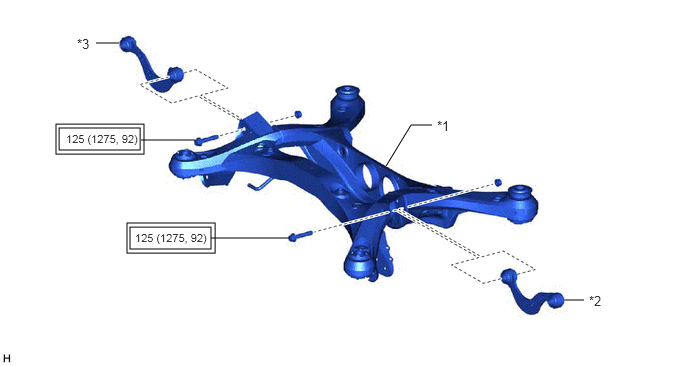

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *2 | REAR UPPER CONTROL ARM ASSEMBLY LH |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
