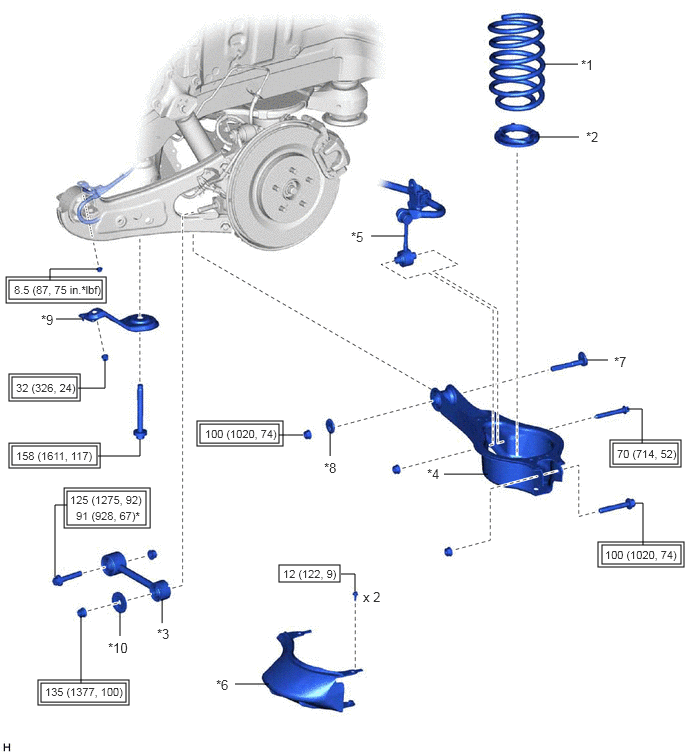

| *1 |
REAR COIL SPRING |
*2 |
REAR LOWER COIL SPRING INSULATOR |
| *3 |
REAR NO. 1 SUSPENSION ARM ASSEMBLY |
*4 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *5 |
REAR STABILIZER LINK ASSEMBLY |
*6 |
REAR SUSPENSION ARM COVER |
| *7 |
REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
*8 |
REAR NO. 2 SUSPENSION CAMBER ADJUST CAM |
| *9 |
REAR LOWER SUSPENSION MEMBER STOPPER |
*10 |
SPACER |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
| * |
For use with a ball joint lock nut wrench |
- |
- |
