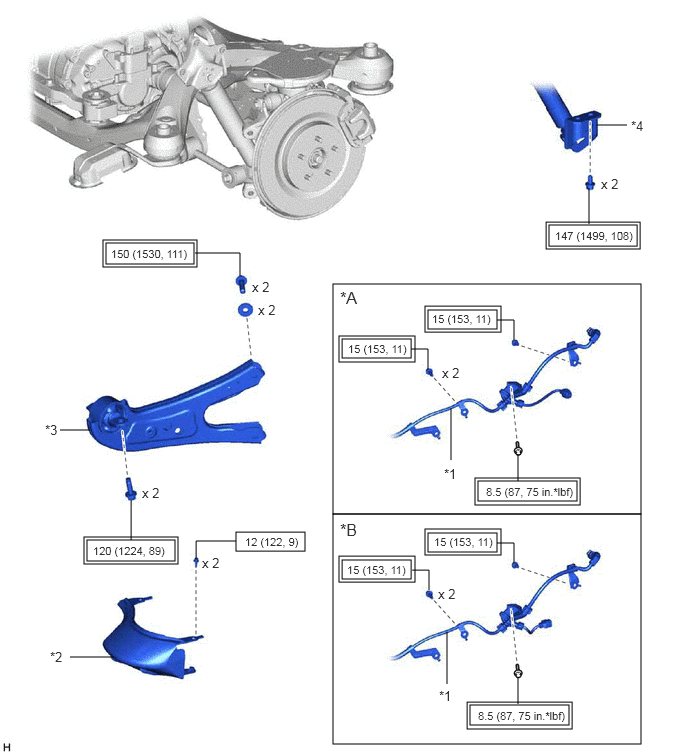

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | *B | for AWD |
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR SUSPENSION ARM COVER |
| *3 | REAR TRAILING ARM ASSEMBLY | *4 | REAR LOWER SHOCK ABSORBER BRACKET SUB-ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
