Components [12/2019 - ]

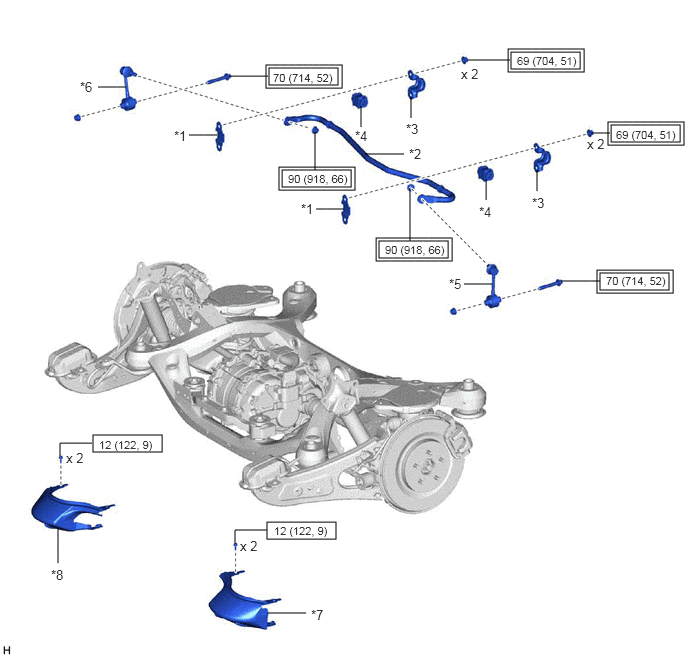

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications
GTY923547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR LOWER STABILIZER BRACKET *2 REAR STABILIZER BAR
*3 REAR STABILIZER BRACKET *4 REAR STABILIZER BUSHING
*5 REAR STABILIZER LINK ASSEMBLY LH *6 REAR STABILIZER LINK ASSEMBLY RH
*7 REAR SUSPENSION ARM COVER LH *8 REAR SUSPENSION ARM COVER RH
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -
