Components [12/2019 - ]

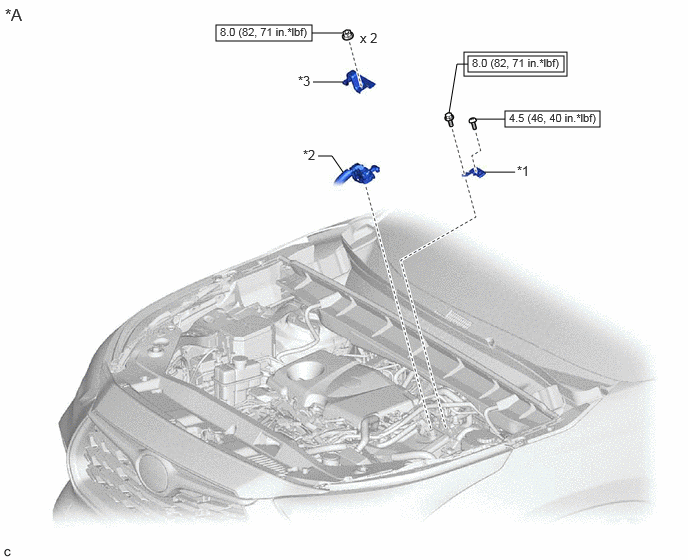

Fig 1: Rear Suspension Member (For HV Model) Replacement Components With Torque Specifications (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
| *3 | NO. 2 INVERTER PROTECTOR | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

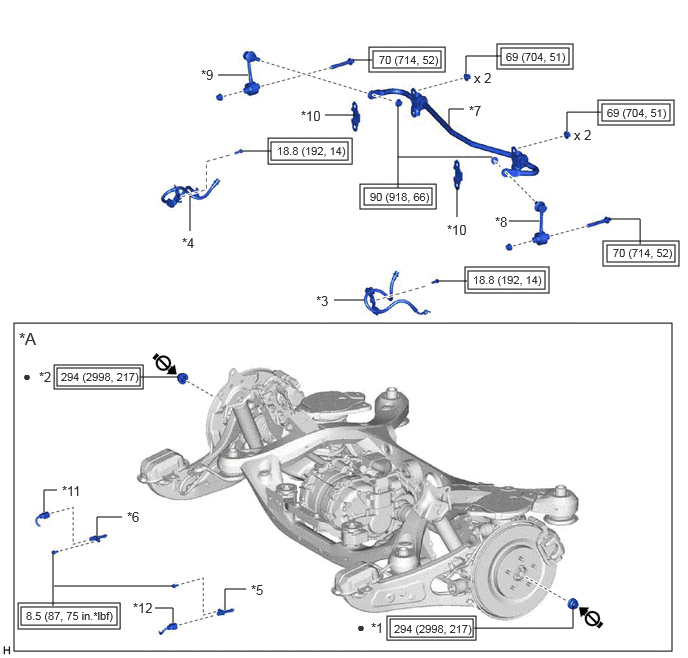

Fig 2: Rear Suspension Member (For HV Model) Replacement Components With Torque Specifications (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | - | - |
| *1 | REAR AXLE SHAFT NUT LH | *2 | REAR AXLE SHAFT NUT RH |
| *3 | REAR FLEXIBLE HOSE LH | *4 | REAR FLEXIBLE HOSE RH |
| *5 | REAR SKID CONTROL SENSOR LH | *6 | REAR SKID CONTROL SENSOR RH |
| *7 | REAR STABILIZER BAR | *8 | REAR STABILIZER LINK ASSEMBLY LH |
| *9 | REAR STABILIZER LINK ASSEMBLY RH | *10 | REAR LOWER STABILIZER BRACKET |
| *11 | NO. 1 PARKING BRAKE WIRE ASSEMBLY | *12 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
|
Do not apply lubricants to the threaded parts | - | - |

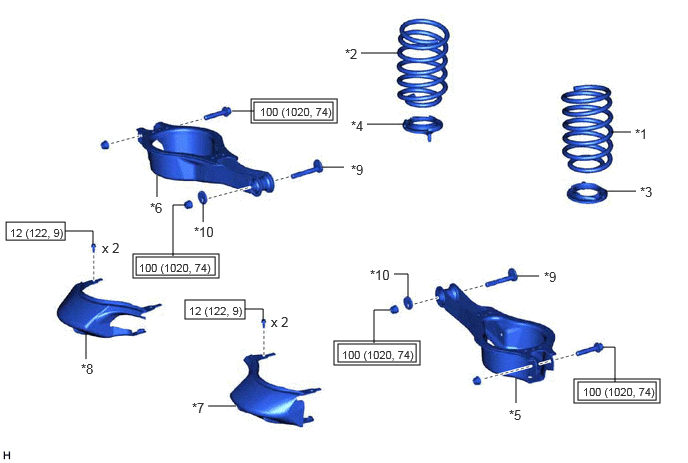

Fig 3: Rear Suspension Member (For HV Model) Replacement Components With Torque Specifications (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR COIL SPRING LH | *2 | REAR COIL SPRING RH |
| *3 | REAR LOWER COIL SPRING INSULATOR LH | *4 | REAR LOWER COIL SPRING INSULATOR RH |
| *5 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | *6 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
| *7 | REAR SUSPENSION ARM COVER LH | *8 | REAR SUSPENSION ARM COVER RH |
| *9 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY | *10 | REAR NO. 2 SUSPENSION CAMBER ADJUST CAM |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

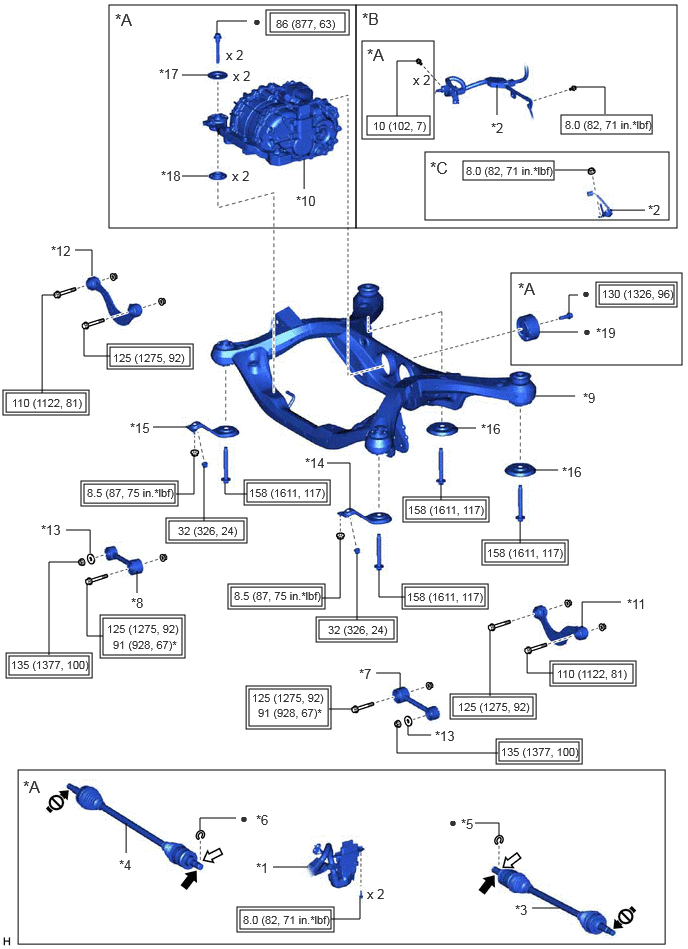

Fig 4: Rear Suspension Member (For HV Model) Replacement Components With Torque Specifications (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for AWD | *B | w/ Wire Harness |
| *C | w/ Height Control Sensor | - | - |
| *1 | HV FLOOR UNDER WIRE | *2 | FRAME WIRE |
| *3 | REAR DRIVE SHAFT ASSEMBLY LH | *4 | REAR DRIVE SHAFT ASSEMBLY RH |
| *5 | REAR DRIVE SHAFT LH SNAP RING | *6 | REAR DRIVE SHAFT RH SNAP RING |
| *7 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH | *8 | REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
| *9 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *10 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY |
| *11 | REAR UPPER CONTROL ARM ASSEMBLY LH | *12 | REAR UPPER CONTROL ARM ASSEMBLY RH |
| *13 | SPACER | *14 | REAR LOWER SUSPENSION MEMBER STOPPER LH |
| *15 | REAR LOWER SUSPENSION MEMBER STOPPER RH | *16 | REAR LOWER SUSPENSION BRACE |
| *17 | UPPER DIFFERENTIAL MOUNT STOPPER | *18 | LOWER DIFFERENTIAL MOUNT STOPPER |
| *19 | DIFFERENTIAL MOUNT CUSHION | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | * | For use with a ball joint lock nut wrench |
|
Do not apply lubricants to the threaded parts | |
MP grease |
|
Toyota Genuine ATF WS | - | - |

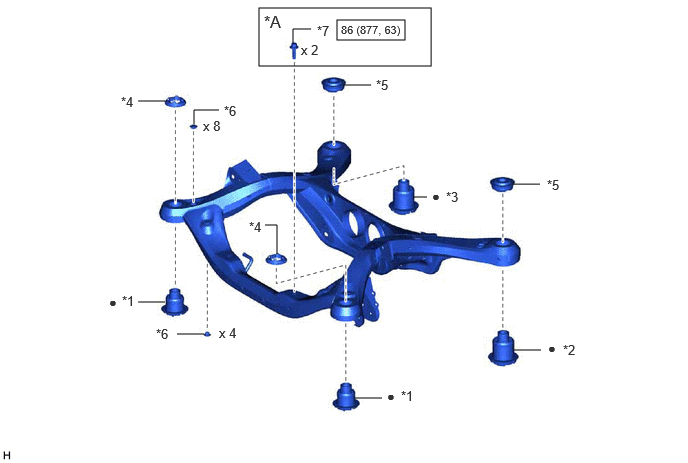

Fig 5: Rear Suspension Member (For HV Model) Replacement Components With Torque Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | - | - |
| *1 | REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION | *2 | REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH |
| *3 | REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH | *4 | REAR SUSPENSION MEMBER UPPER STOPPER |
| *5 | REAR SUSPENSION MEMBER LOWER STOPPER RETAINER | *6 | HOLE PLUG |
| *7 | BOLT | - | - |
| • | Non-reusable part | - | - |
