Installation [12/2019 - ]: Procedure

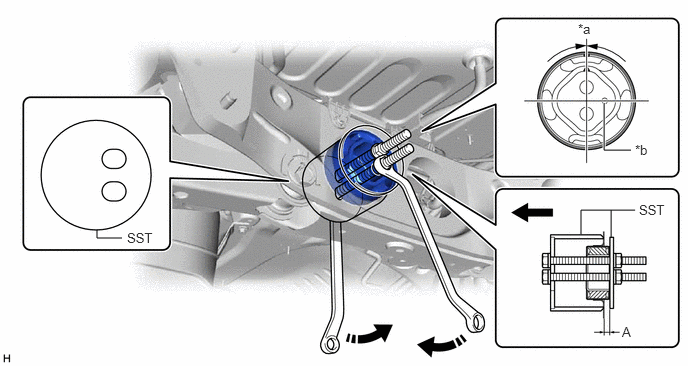

1. Using SST, install a new rear No. 1 differential mount cushion.
   • SST: 09570-48010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	0° +/- 3°	*b	Hole
   	Front of the Vehicle	-	-

   Standard Distance (A)

   15.3 to 16.3 mm (0.602 to 0.642 in.)

   NOTE:

   • Make sure that the rear No. 1 differential mount cushion is aligned within 3° from the center.
   • Install the rear No. 1 differential mount cushion so that the hole is positioned as shown in the illustration.
   • Temporarily install the rear No. 1 differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
   • Before using SST, apply grease to the SST bolt.
   • Be sure to use the correct combination of SST.
   • Be sure to use the correct direction of SST.
   • Make sure that SST contacts the entire circumference of the rear No. 1 differential mount cushion.
   • Do not tilt the bolts of SST.
   • Tighten the 2 bolts of SST so that they enter the 2 holes of the rear No. 1 differential mount cushion by an equal amount.

See step  4

See step  5
