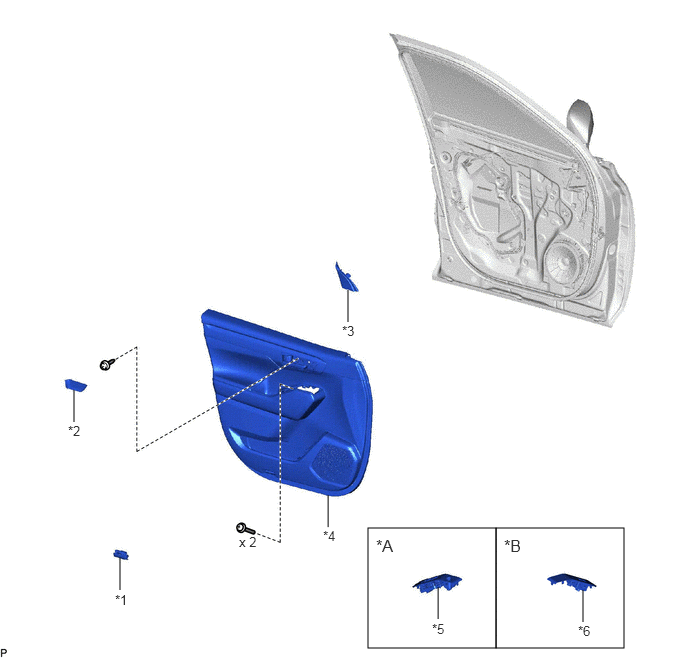

Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | FRONT DOOR INSIDE HANDLE BEZEL |
| *3 | FRONT DOOR LOWER FRAME BRACKET GARNISH | *4 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
| *5 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *6 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |

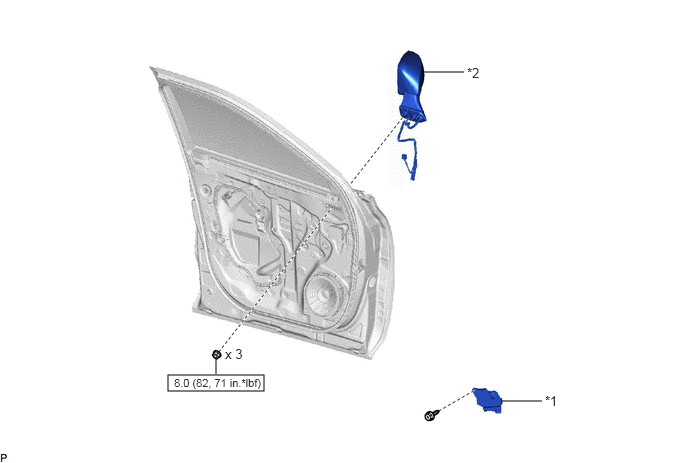

Fig 2: Outer Rear View Mirror Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OUTER MIRROR INSTALL HOLE COVER | *2 | OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

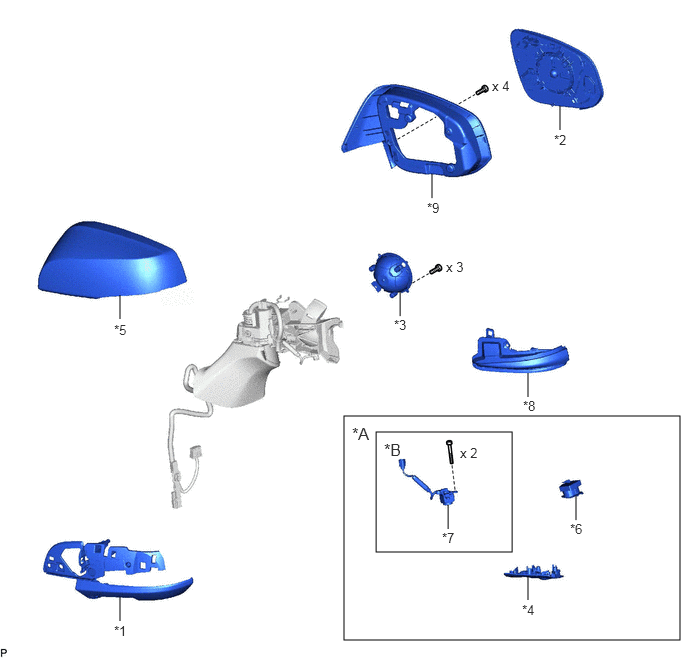

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Foot Light | *B | w/ Panoramic View Monitor System |
| *1 | LOWER HOUSING | *2 | OUTER MIRROR |
| *3 | OUTER MIRROR ACTUATOR ASSEMBLY | *4 | OUTER MIRROR BOTTOM COVER |
| *5 | OUTER MIRROR COVER | *6 | OUTER MIRROR LIGHT ASSEMBLY |
| *7 | SIDE TELEVISION CAMERA ASSEMBLY | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY |
| *9 | VISOR HOUSING | - | - |
