Reassembly [12/2019 - 10/2022]: Procedure

  1. INSTALL OUTER MIRROR BOTTOM COVER (w/ Wire Harness)
    1. Engage the 2 claws and 2 guides to install the outer mirror bottom cover.
      GTY912391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL OUTER MIRROR LIGHT ASSEMBLY (w/ Foot light)

    Refer to PROCEDURE - Step 1

  3. INSTALL SIDE TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 1

  4. INSTALL OUTER MIRROR ACTUATOR ASSEMBLY
    1. Connect the connector.
      GTY912389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T10 "TORX" driver, install the outer mirror actuator assembly with the 3 screws.
      GTY912392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSTALL LOWER HOUSING

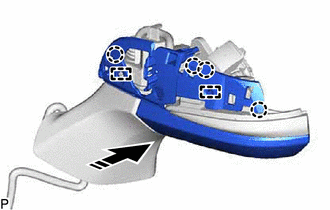

    1. Engage the 2 guides and 4 claws as shown in the illustration to install the lower housing.
      GTY896613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. w/ Panoramic View Monitor System:
      1. Connect the connector.
        GTY940432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the 2 claws.
  7. INSTALL VISOR HOUSING
    1. Engage the 2 claws and guide as shown in the illustration to install the visor housing.
      GTY855889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Using a T10 "TORX" driver, install the visor housing with the 4 screws.
      GTY902847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL OUTER MIRROR COVER

    See step  1

  9. INSTALL OUTER MIRROR

    See step  1
