Reassembly [10/2022 - ]: Procedure

  1. INSTALL OUTER MIRROR BOTTOM COVER (w/ Wire Harness)
    1. Engage the 2 claws and 2 guides to install the outer mirror bottom cover.
      GTY912391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL OUTER MIRROR LIGHT ASSEMBLY (w/ Foot light)

    Refer to PROCEDURE - Step 1

  3. INSTALL SIDE TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 1

  4. INSTALL OUTER MIRROR ACTUATOR ASSEMBLY
    1. Connect the connector.
      GTY912389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T10 "TORX" driver, install the outer mirror actuator assembly with the 3 screws.
      GTY912392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSTALL LOWER HOUSING
    1. w/ Wire Harness:
      1. Engage the guide.

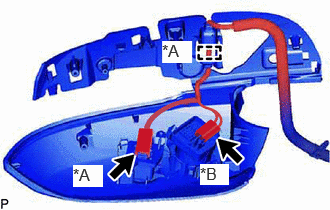

        GTY1109846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Panoramic View Monitor System
        *B w/ Foot Light
      2. Connect the connector.
    2. Engage the 2 guides and 4 claws as shown in the illustration to install the lower housing.

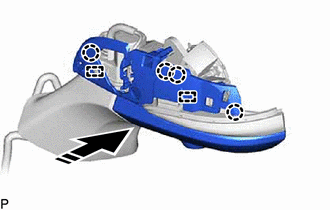

      GTY1111659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  7. INSTALL VISOR HOUSING
    1. Engage the 2 claws and guide as shown in the illustration to install the visor housing.

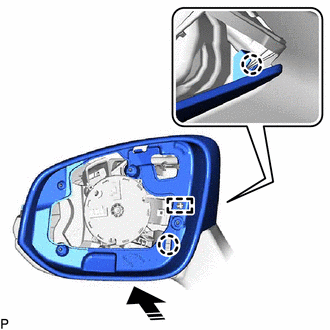

      GTY855889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Using a T10 "TORX" driver, install the visor housing with the 4 screws.
      GTY902847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL OUTER MIRROR COVER

    See step  1

  9. INSTALL OUTER MIRROR

    See step  1
