Removal [12/2019 - ]: Procedure

  1. REMOVE OUTER MIRROR
    1. Apply protective tape to the areas shown in the illustration.

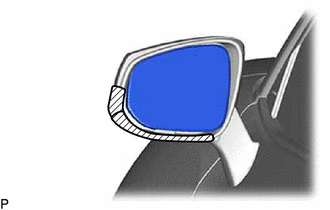

      GTY903594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Push the upper part of the mirror surface and tilt it.
      NOTE:

      Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

    3. Using a screwdriver with its tip wrapped with protective tape and a moulding remover, disengage the 8 claws as shown in the illustration.

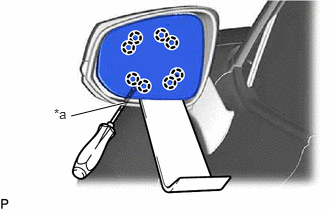

      GTY943182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    4. for Type A:
      1. w/ Blind Spot Monitor System:

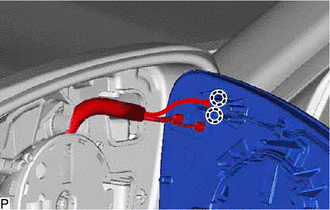

        GTY912409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Disengage the 2 claws.
      2. Disconnect each connector to remove the outer mirror.

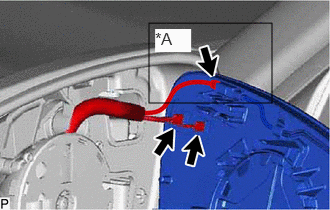

        GTY844990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Blind Spot Monitor System
    5. for Type B:
      1. w/o Blind Spot Monitor System:

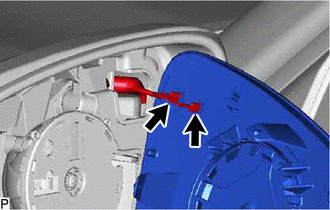

        GTY1118375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Disconnect the 2 connectors to remove the outer mirror.
      2. w/ Blind Spot Monitor System:
        1. Disengage the 3 clamps.
        2. Disconnect the 3 connectors to remove the outer mirror.

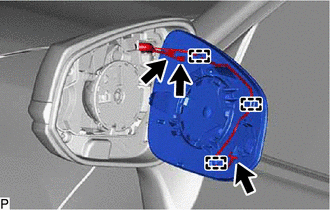

        GTY1112676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
