Removal [12/2019 - ]: Procedure

See step  1

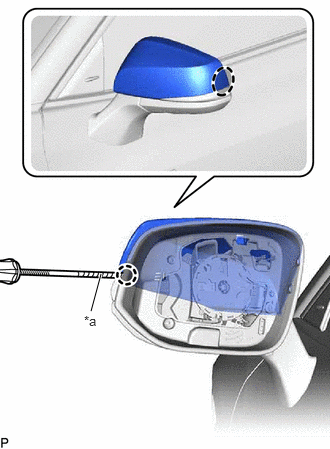

1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   	Insert Screwdriver Here

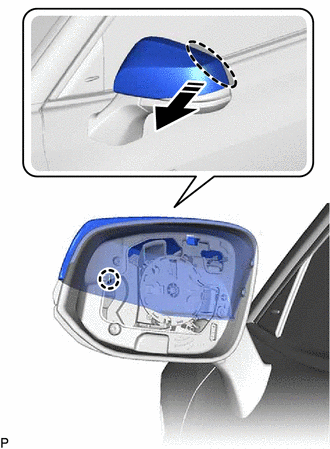

2. Pull the outer mirror cover as shown in the illustration to disengage the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here
   	Pull in this Direction

   NOTE:

   As the claw may be damaged, make sure not to apply force in any direction other than shown in the illustration.

   HINT:

   If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

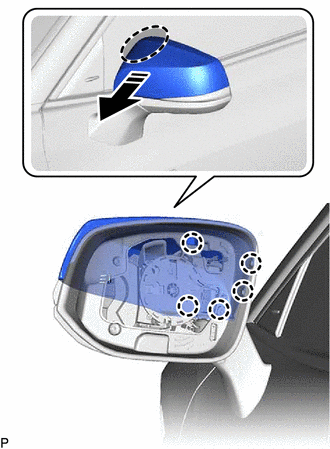

3. Pull the outer mirror cover as shown in the illustration to disengage the 5 claws and remove the outer mirror cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here
   	Pull in this Direction

   NOTE:

   As the claws may be damaged, make sure not to apply force in any direction other than shown in the illustration.

   HINT:

   If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.
