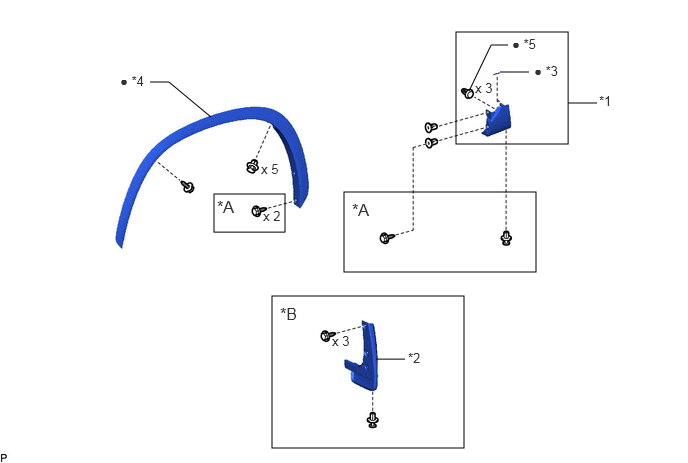

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Mudguard | *B | w/ Mudguard |
| *1 | FRONT FENDER MOULDING SUB-ASSEMBLY | *2 | FRONT FENDER MUDGUARD |
| *3 | FRONT FENDER UPPER OUTSIDE MOULDING PAD | *4 | FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY |
| *5 | CLIP | - | - |
| • | Non-reusable part | - | - |
