Components [12/2019 - ]

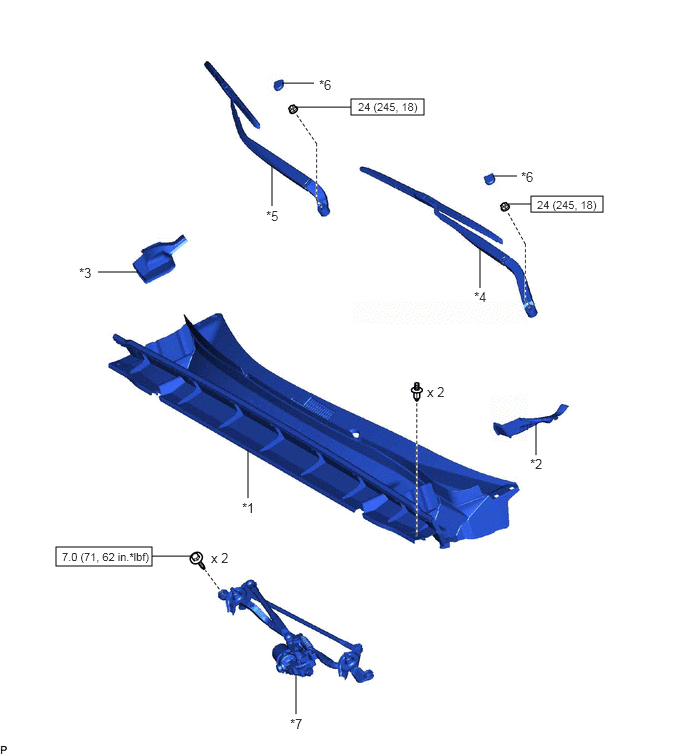

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY | *2 | FRONT FENDER TO COWL SIDE SEAL LH |
| *3 | FRONT FENDER TO COWL SIDE SEAL RH | *4 | FRONT WIPER ARM AND BLADE ASSEMBLY LH |
| *5 | FRONT WIPER ARM AND BLADE ASSEMBLY RH | *6 | FRONT WIPER ARM HEAD CAP |
| *7 | WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

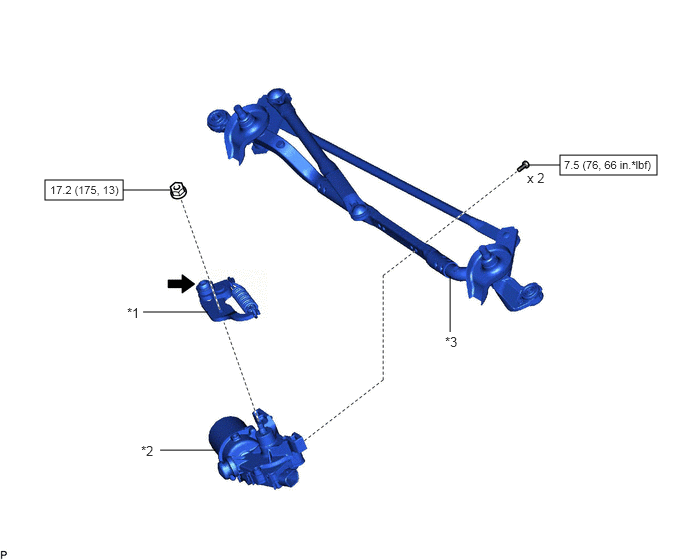

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WIPER CRANK SUB-ASSEMBLY | *2 | WINDSHIELD WIPER MOTOR ASSEMBLY |
| *3 | WIPER LINK ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | |
MP grease |
