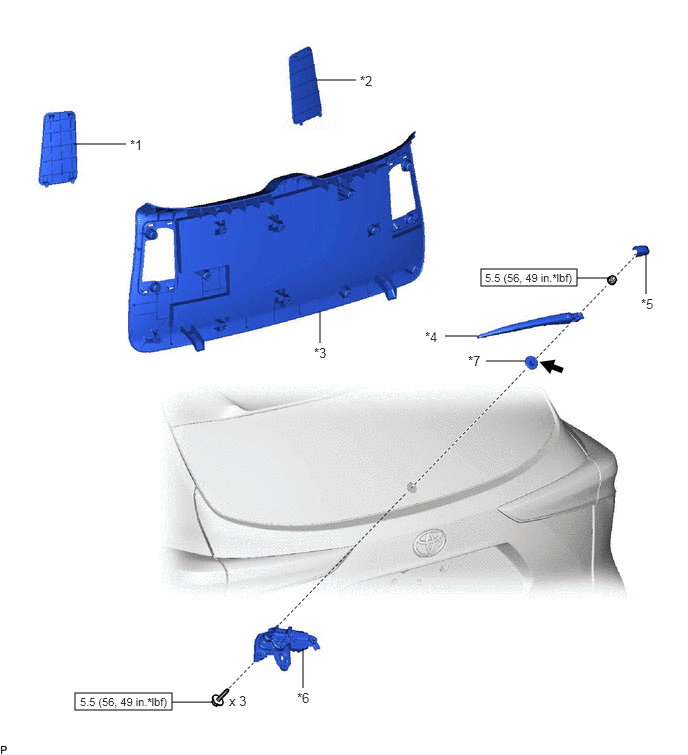

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BACK DOOR SERVICE HOLE COVER LH | *2 | BACK DOOR SERVICE HOLE COVER RH |
| *3 | BACK DOOR TRIM PANEL ASSEMBLY | *4 | REAR WIPER ARM AND BLADE ASSEMBLY |
| *5 | REAR WIPER ARM HEAD CAP | *6 | REAR WIPER MOTOR ASSEMBLY |
| *7 | REAR WIPER MOTOR GROMMET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | |
MP grease |
