Removal [12/2019 - ]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 7 [11/2023 - ]

  4. REMOVE REAR WIPER ARM HEAD CAP
    1. Disengage the 2 guides as shown in the illustration.
      GTY916520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

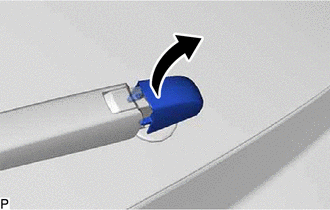

    2. Open the rear wiper arm head cap as shown in the illustration.
      GTY916519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

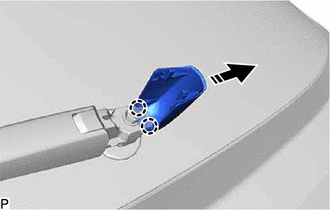

    3. Disengage the 2 claws to remove the rear wiper arm head cap as shown in the illustration.
      GTY895994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

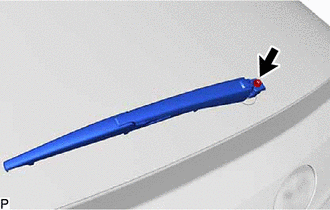

  5. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. Remove the nut and rear wiper arm and blade assembly.
      GTY943455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR WIPER MOTOR ASSEMBLY

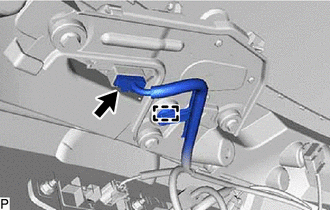

    1. Disconnect the connector.
      GTY916523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

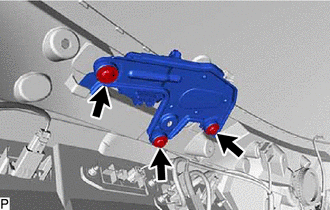

    3. Remove the 3 bolts and rear wiper motor assembly.
      NOTE:

      Be careful not to scratch the back door glass.

      GTY916522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

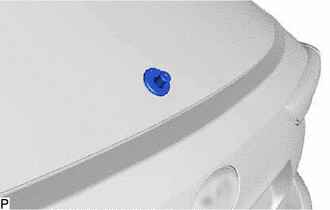

  7. REMOVE REAR WIPER MOTOR GROMMET
    1. Remove the rear wiper motor grommet.
      GTY916512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
