Removal [12/2019 - ]: Procedure

REMOVE LOWER STEERING COLUMN COVER

NOTE:

Removing the lower steering column cover in the incorrect order will cause the parts to break.

Release the tilt and telescopic lever and fully extend and lower the steering column assembly.
Lock the tilt and telescopic lever.

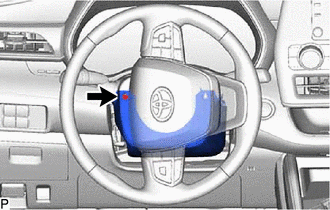

Turn the steering wheel assembly to the left and remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

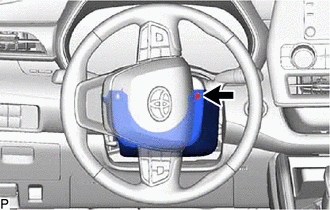

Turn the steering wheel assembly to the right and remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

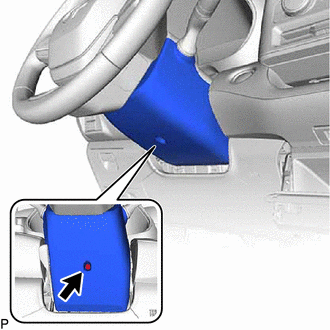

Remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

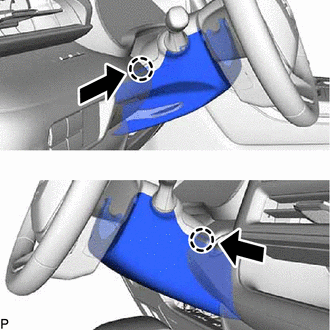

Push the lower steering column cover and disengage the 2 claws as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push

Disengage the 2 claws to remove the lower steering column cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE UPPER STEERING COLUMN COVER

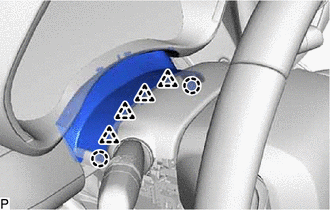

Disengage the 2 claws and 4 clips to separate the instrument cluster finish panel assembly from the upper steering column cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

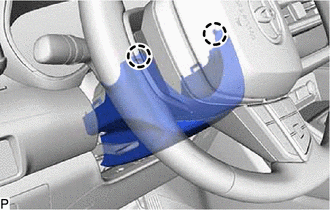

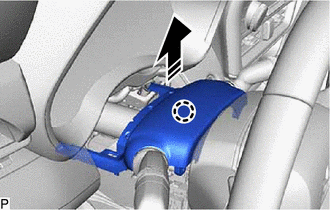

Disengage the claw to remove the upper steering column cover as shown in the illustration.

Remove in this Direction

REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

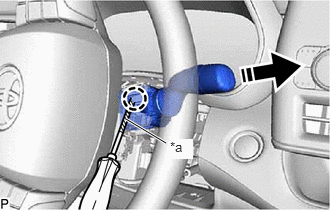

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

*a	Protective Tape
	Remove in this Direction

NOTE:

If the claw is pulled with excessive force, it may break.
