Inspection [12/2019 - ]: Procedure
- INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
FRONT WIPER SWITCHTester Connection Condition Specified Condition 14 (MIST) - 5 (E) MIST position Below 1 Ω Except MIST position 10 kΩ or higher 10 (W_OFF) - 5 (E) OFF position Below 1 Ω Except OFF position 10 kΩ or higher 13 (+S) - 5 (E) INT position*1 Below 1 Ω AUTO position*2 Below 1 Ω Except INT position 10 kΩ or higher 11 (+1) - 5 (E) LO position Below 1 Ω Except LO position 10 kΩ or higher 12 (+2) - 5 (E) HI position Below 1 Ω Except HI position 10 kΩ or higher FRONT WASHER SWITCHTester Connection Condition Specified Condition 15 (WF) - 5 (E) ON position Below 1 Ω OFF position 10 kΩ or higher REAR WIPER SWITCHTester Connection Condition Specified Condition 7 (C1R) - 5 (E) OFF position 10 kΩ or higher 6 (+1R) - 5 (E) 7 (C1R) - 5 (E) INT position Below 1 Ω 6 (+1R) - 5 (E) ON position REAR WASHER SWITCHTester Connection Condition Specified Condition 9 (WR) - 5 (E) ON position Below 1 Ω OFF position 10 kΩ or higher INTERMITTENT TIME ADJUSTMENT SWITCH*1Tester Connection Condition Specified Condition 4 (VR) - 5 (E) P1 position 1102 to 1218 Ω P2 position 570 to 630 Ω P3 position 256.5 to 283.5 Ω P4 position Below 1 Ω AUTO SENSITIVITY ADJUSTMENT SWITCH*2Tester Connection Condition Specified Condition 4 (VR) - 5 (E) P1 position 1102 to 1218 Ω P2 position 570 to 630 Ω P3 position 256.5 to 283.5 Ω P4 position Below 1 Ω - *1: w/o Auto Wiper System
- *2: w/ Auto Wiper System

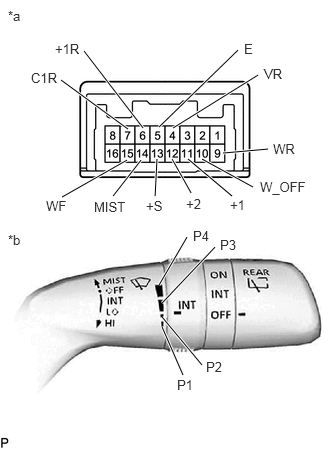

*a Component without harness connected
(Windshield Wiper Switch Assembly)*b Windshield Wiper Switch Assembly
(Adjusting Ring Position)If the result is not as specified, replace the windshield wiper switch assembly.
- Measure the resistance according to the value(s) in the table below.
