Installation [12/2019 - ]: Procedure

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

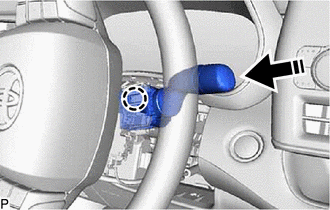

    1. Engage the claw to install the windshield wiper switch assembly as shown in the illustration.
      GTY907066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL UPPER STEERING COLUMN COVER

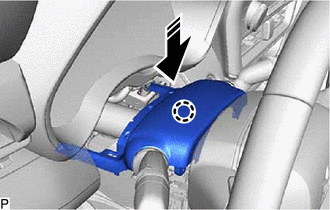

    1. Engage the claw to install the upper steering column cover as shown in the illustration.
      GTY939212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 4 clips and 2 claws to connect the instrument cluster finish panel assembly to the upper steering column cover.
  3. INSTALL LOWER STEERING COLUMN COVER
    NOTE:

    If the lower steering column cover sub-assembly is installed in the incorrect order, the parts may break.

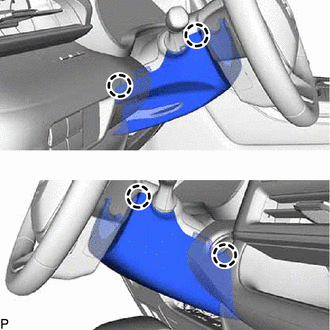

    1. Engage the 4 claws.
      GTY916309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
    3. Turn the steering wheel assembly to the left and install the screw.
    4. Turn the steering wheel assembly to the right and install the lower steering column cover sub-assembly with the screw.
