Removal [11/2023 - ]: Procedure

except Sport Package: Refer to REMOVAL [11/2023 - ]

for Sport Package: Refer to REMOVAL [09/2020 - ]

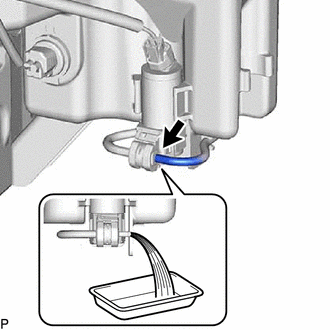

1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use a container to collect the washer fluid.

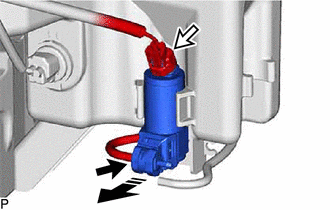

1. Disconnect the washer hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Disconnect the connector.
3. Remove the windshield washer motor and pump assembly as shown in the illustration.

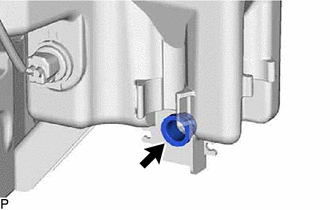

1. Remove the windshield washer jar bush from the washer jar.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
