Installation [09/2020 - ]: Procedure

  1. INSTALL WINDSHIELD WASHER JAR BUSH
    1. Install a new windshield washer jar bush to the washer jar.
  2. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

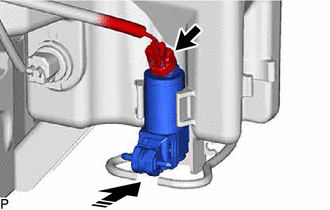

    1. Install the windshield washer motor and pump assembly as shown in the illustration.
      GTY871254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.

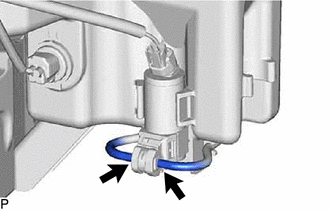

    3. Connect the 2 washer hoses.
      GTY916299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. ADD WASHER FLUID
    1. Add washer fluid to the washer jar.
  4. INSTALL FRONT BUMPER ASSEMBLY

    except Sport Package: Refer to INSTALLATION [09/2020 - ]

    for Sport Package: Refer to INSTALLATION [09/2020 - ]
