On-Vehicle Inspection [12/2019 - ]: Procedure

  1. INSPECT WASHER NOZZLE SUB-ASSEMBLY
    1. Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.

      Standard

      Center of washer fluid contacts the windshield in the areas shown in the illustration.

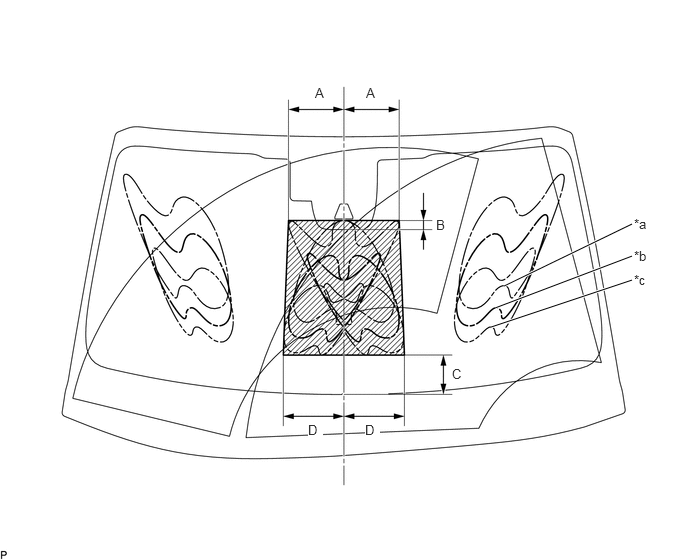

      GTY918010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Upper Limit *b Standard
      *c Lower Limit - -
      Measurement - -

      Standard Measurement

      Area Measurement Area Measurement
      A 153.8 mm (6.06 in.) B 25.2 mm (0.992 in.)
      C 109.1 mm (4.30 in.) D 169.7 mm (6.68 in.)

      HINT:

      If the result is not as specified, replace the washer nozzle sub-assembly.
