Removal [12/2019 - ]: Procedure

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

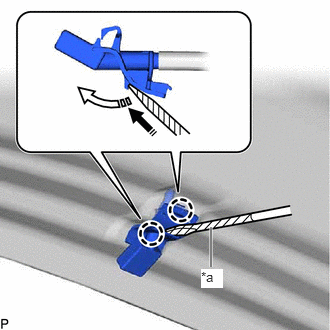

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration to separate the washer nozzle sub-assembly.
      GTY921437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      Be careful not to damage the windshield glass.

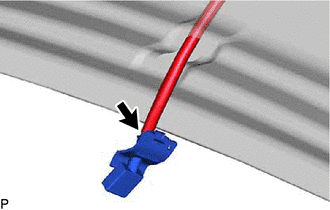

    2. Disconnect the washer hose to remove the washer nozzle sub-assembly.
      GTY943404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Washer nozzle sub-assemblies cannot be reused.
