Adjustment [12/2019 - ]: Procedure

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

    See step  1

  2. ADJUST WASHER NOZZLE SUB-ASSEMBLY

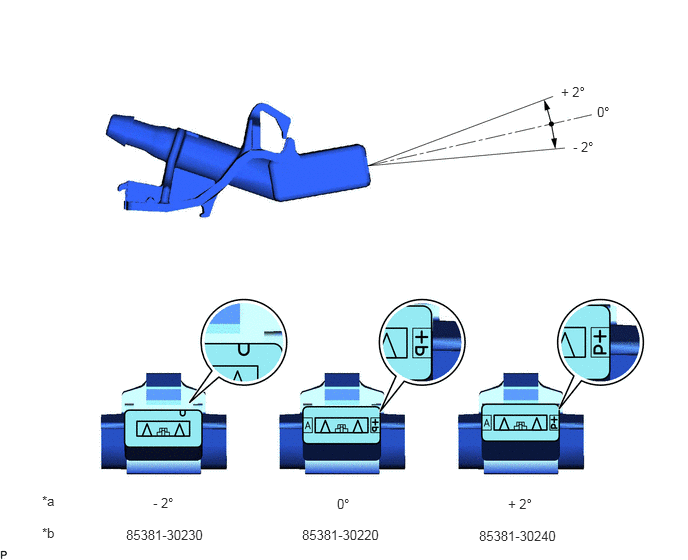

    1. Select a washer nozzle sub-assembly so that the position the washer fluid hits the windshield will be within the standard area. Replace the washer nozzle sub-assembly with the selected one.
      GTY850026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Washer Fluid Spray Angle *b Part Number
  3. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    See step  1
