Installation [12/2019 - ]: Procedure

  1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
    1. Connect a new washer nozzle sub-assembly to the washer hose.

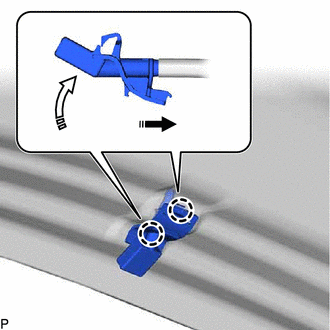

    2. Engage the 2 claws as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.
      GTY846263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  2. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    See step  1

  3. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    See step  2
