On-Vehicle Inspection [12/2019 - ]: Procedure
- INSPECT REAR WASHER NOZZLE
- Operate the rear washer nozzle and check the position that the washer fluid contacts the back door glass.
Standard

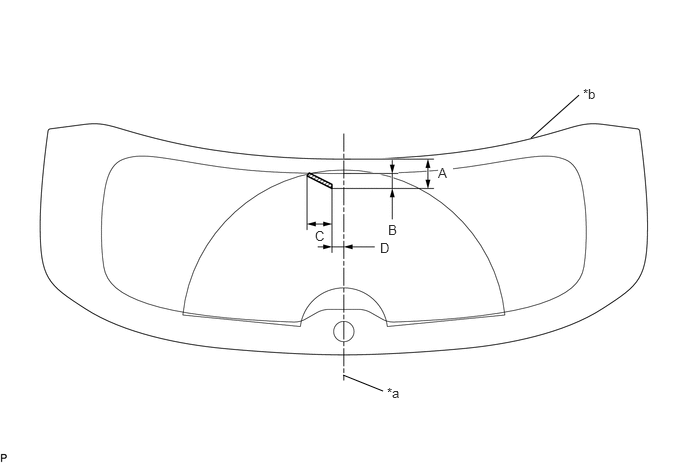

Washer fluid contacts the back door glass in the area shown in the illustration.
*a Vehicle center line *b Edge of back door glass
Measurement - - Standard Measurement
Area Measurement Area Measurement A 61.7 mm (2.43 in.) B 31.9 mm (1.26 in.) C 52.9 mm (2.08 in.) D 24.9 mm (0.980 in.) HINT:
If the result is not as specified, adjust the rear washer nozzle.
- Operate the rear washer nozzle and check the position that the washer fluid contacts the back door glass.
