Removal [12/2019 - ]: Procedure

  1. REMOVE CENTER STOP LIGHT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE REAR WASHER NOZZLE

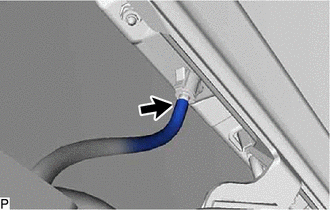

    1. Disconnect the washer hose.
      GTY916331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

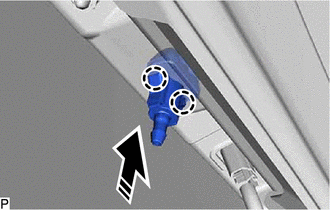

    2. Disengage the 2 claws and remove the rear washer nozzle as shown in the illustration.
      GTY864688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
