Installation [12/2019 - ]: Procedure

  1. INSTALL REAR WASHER NOZZLE

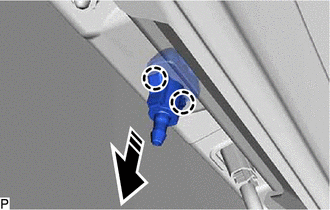

    1. Engage the 2 claws to install the rear washer nozzle as shown in the illustration.
      GTY869739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the washer hose.
  2. INSPECT REAR WASHER NOZZLE

    See step  1

  3. ADJUST REAR WASHER NOZZLE

    See step  1

  4. INSTALL CENTER STOP LIGHT ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]
