Removal [12/2019 - 11/2023]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023]

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 11/2023]

  4. REMOVE TELEVISION CAMERA ASSEMBLY WITH NOZZLE

    w/o Digital Inner Mirror: Refer to PROCEDURE - Step 4

    w/ Digital Inner Mirror: Refer to PROCEDURE - Step 5

  5. REMOVE CAMERA CLEANER NOZZLE ASSEMBLY (w/ Digital Inner Mirror)

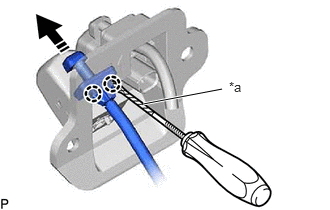

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the camera cleaner nozzle assembly as shown in the illustration.
      GTY939965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  6. REMOVE CAMERA CLEANER NOZZLE ASSEMBLY

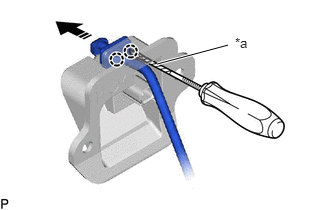

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the camera cleaner nozzle assembly as shown in the illustration.
      GTY884074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
