Removal [09/2020 - 11/2023]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    except Sport Package: Refer to REMOVAL [09/2020 - 11/2023]

    for Sport Package: Refer to REMOVAL [09/2020 - ]

  2. DRAIN WASHER FLUID

    See step  2

  3. REMOVE LEVEL WARNING SWITCH ASSEMBLY
    1. Disconnect the connector.

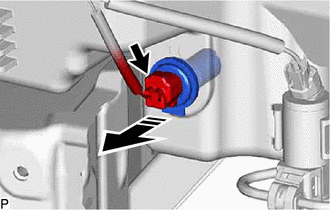

      GTY885657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the level warning switch assembly as shown in the illustration.
