Installation [12/2019 - 09/2020]: Procedure

  1. INSTALL LEVEL WARNING SWITCH ASSEMBLY

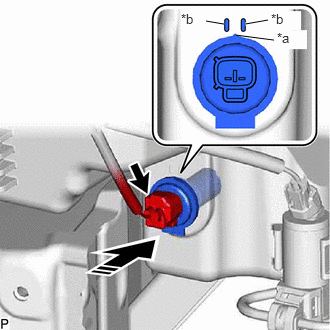

    1. Install the level warning switch assembly as shown in the illustration.
      GTY889481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Marking
      Install in this Direction
      NOTE:

      Make sure that the protrusion of the level warning switch assembly is between the 2 markings.

    2. Connect the connector.
  2. ADD WASHER FLUID

    See step  3

  3. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [12/2019 - 09/2020]
