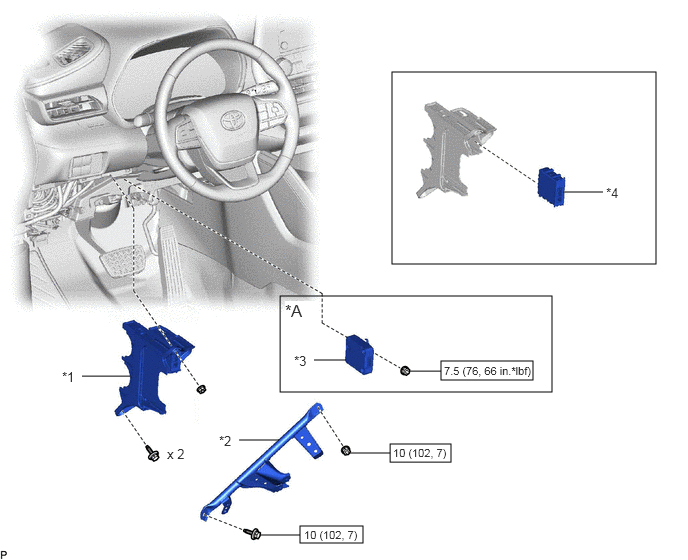

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for HV Model | - | - |
| *1 | ECU INTEGRATION BOX LH | *2 | NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY |
| *3 | VEHICLE APPROACHING SPEAKER CONTROLLER | *4 | WINDSHIELD WIPER RELAY ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
