Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER (for HV Model)

    Refer to PROCEDURE - Step 2

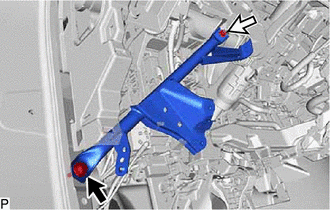

  3. REMOVE NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
    1. Remove the bolts, nut and No. 3 instrument panel to cowl brace sub-assembly.
      GTY909363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

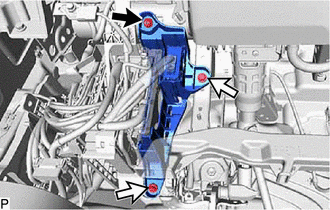

  4. REMOVE ECU INTEGRATION BOX LH
    1. Disconnect each connector.
    2. Remove the nut, 2 bolts and ECU integration box LH.
      GTY905477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt

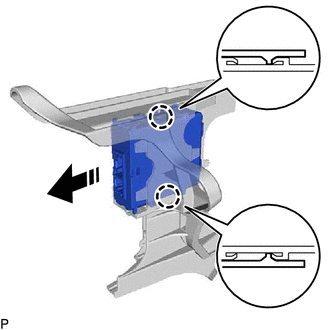

  5. REMOVE WINDSHIELD WIPER RELAY ASSEMBLY
    1. Disengage the 2 claws to remove the windshield wiper relay assembly as shown in the illustration.
      GTY911243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:
      • If the ECU integration box LH is deformed or damaged, replace it.
      • Do not bend the 2 claws more than necessary.
