Installation [12/2019 - ]: Procedure

  1. INSTALL WINDSHIELD WIPER RELAY ASSEMBLY

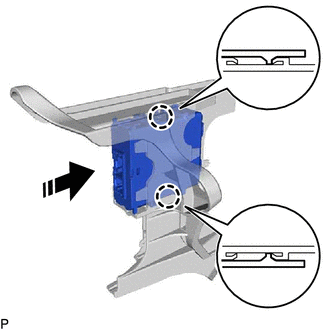

    1. Engage the 2 claws to install the windshield wiper relay assembly as shown in the illustration.
      GTY916991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:

      Make sure that the windshield wiper relay assembly is securely installed.

  2. INSTALL ECU INTEGRATION BOX LH
    1. Install the ECU integration box LH with the 2 bolts and nut.
    2. Connect each connector.
  3. INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
    1. Install the No. 3 instrument panel to cowl brace sub-assembly with the bolt and nut.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  4. INSTALL VEHICLE APPROACHING SPEAKER CONTROLLER (for HV Model)

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  5. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
