Installation [12/2019 - ]: Procedure

  1. INSTALL POWER BACK DOOR SENSOR ASSEMBLY
    1. Temporarily install the power back door sensor assembly with the 2 clips.

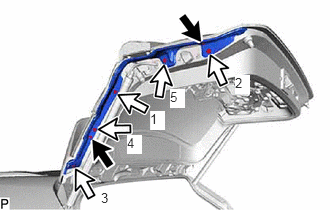

      Fig 1: Power Back Door Sensor Assembly Screws Tightening Sequence
      GTY915221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the power back door sensor assembly with the 5 screws.

      HINT:

      Install each screw in the order shown in the illustration.

    3. Connect the connector.
  2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

    See step  35

  3. INSTALL BACK DOOR SERVICE HOLE COVER LH

    See step  36

  4. INSTALL BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.
