Adjustment [12/2019 - ]: Procedure

INSPECT REAR DOOR

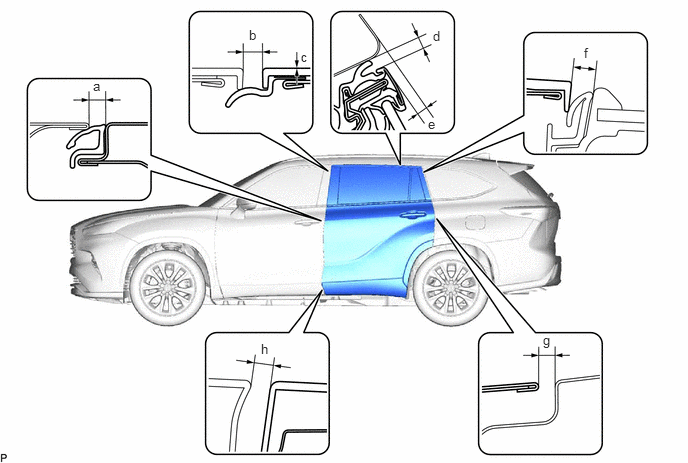

Check that the clearance measurements of areas a through h are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	2.7 to 5.7 mm (0.106 to 0.224 in.)	b	2.6 to 6.6 mm (0.102 to 0.260 in.)
c	-1.9 to 2.1 mm (-0.0748 to 0.0827 in.)	d	2.85 to 6.25 mm (0.112 to 0.246 in.)
e	2.25 to 6.25 mm (0.0886 to 0.246 in.)	f	4.8 to 8.8 mm (0.189 to 0.346 in.)
g	2.6 to 5.6 mm (0.102 to 0.220 in.)	h	5.0 to 9.0 mm (0.197 to 0.354 in.)

ADJUST REAR DOOR

NOTE:

Make sure to turn the ignition switch off before adjusting the door lock strikers.

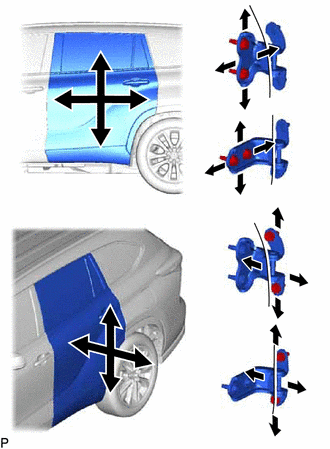

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

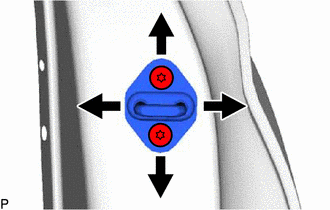

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
