Components [12/2019 - 11/2023]

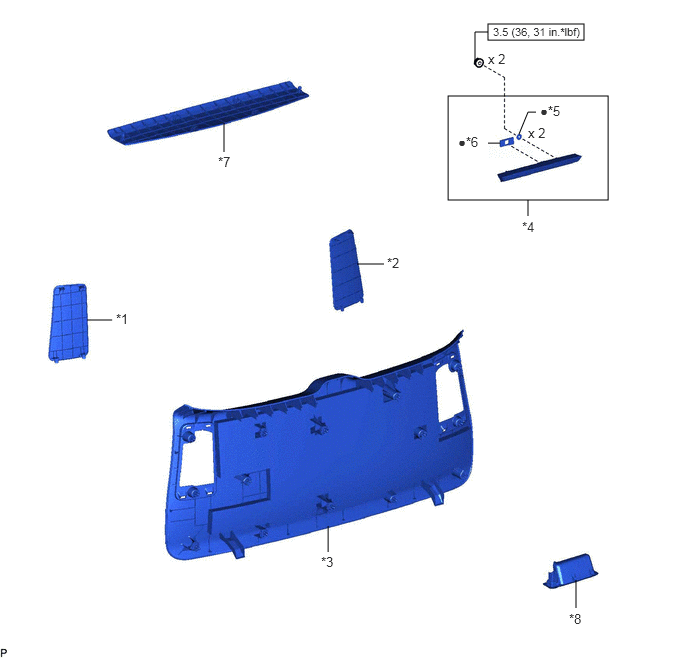

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BACK DOOR SERVICE HOLE COVER LH | *2 | BACK DOOR SERVICE HOLE COVER RH |
| *3 | BACK DOOR TRIM PANEL ASSEMBLY | *4 | CENTER STOP LIGHT ASSEMBLY |
| *5 | CENTER STOP LIGHT COVER | *6 | CENTER STOP LIGHT GASKET |
| *7 | DECK TRIM POCKET COVER PLATE | *8 | DOOR PULL HANDLE |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

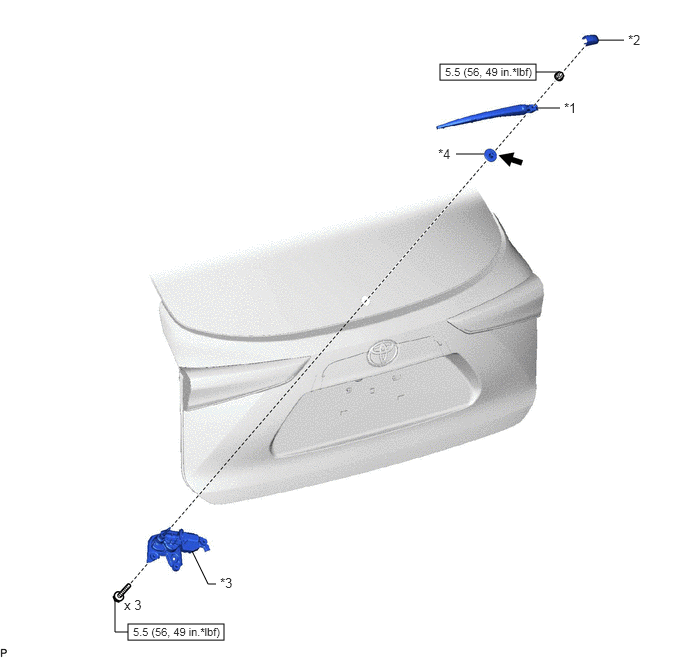

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR WIPER ARM AND BLADE ASSEMBLY | *2 | REAR WIPER ARM HEAD CAP |
| *3 | REAR WIPER MOTOR ASSEMBLY | *4 | REAR WIPER MOTOR GROMMET |
|
N.m (kgf/cm, ft.lbf): Specified torque | |
MP grease |

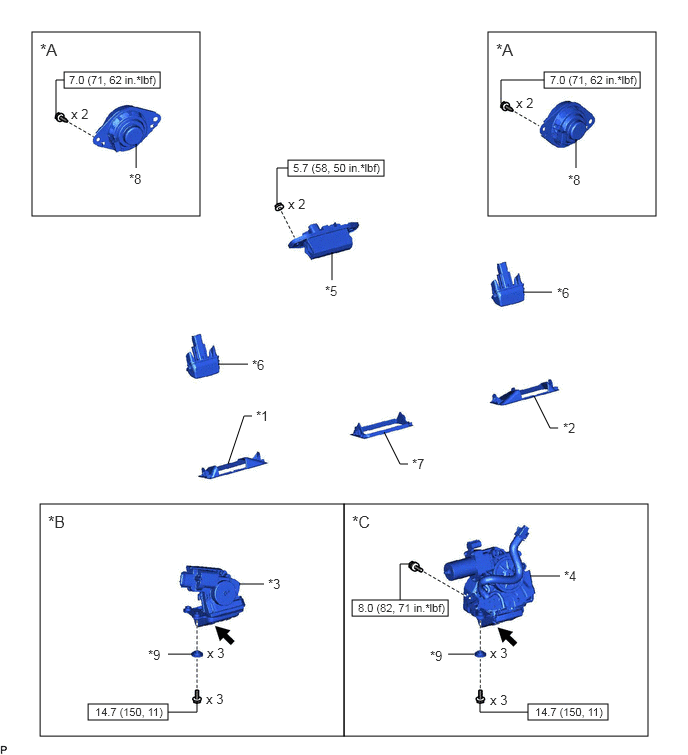

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 11 Speaker | *B | w/o Power Back Door |
| *C | w/ Power Back Door | - | - |
| *1 | BACK DOOR FINISH PANEL COVER LH | *2 | BACK DOOR FINISH PANEL COVER RH |
| *3 | BACK DOOR LOCK ASSEMBLY | *4 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH |
| *5 | BACK DOOR OPENER SWITCH ASSEMBLY | *6 | LICENSE PLATE LIGHT ASSEMBLY |
| *7 | NO. 1 BACK DOOR FINISH PANEL PROTECTOR | *8 | REAR NO. 3 SPEAKER ASSEMBLY |
| *9 | BUSH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | |
MP grease |

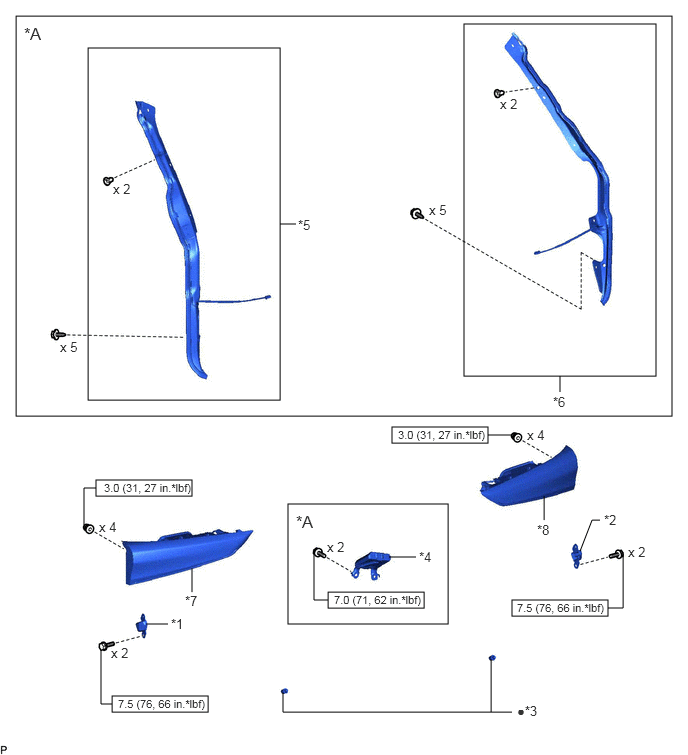

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Power Back Door | - | - |
| *1 | BACK DOOR LOWER STOPPER LH | *2 | BACK DOOR LOWER STOPPER RH |
| *3 | CUSHION | *4 | MULTIPLEX NETWORK DOOR ECU |
| *5 | POWER BACK DOOR SENSOR ASSEMBLY LH | *6 | POWER BACK DOOR SENSOR ASSEMBLY RH |
| *7 | REAR LIGHT ASSEMBLY LH | *8 | REAR LIGHT ASSEMBLY RH |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

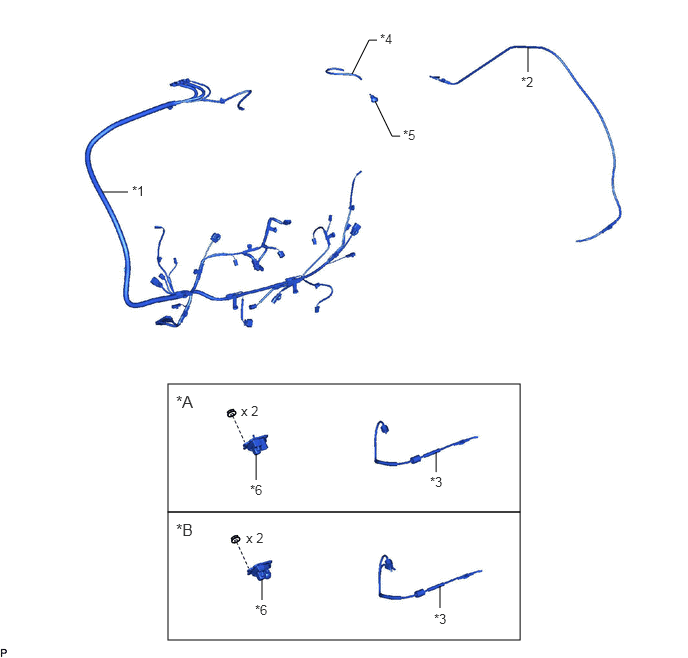

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Digital Inner Mirror | *B | w/ Digital Inner Mirror |
| *1 | NO. 1 BACK DOOR WIRE | *2 | NO. 1 CAMERA CLEANER HOSE |
| *3 | NO. 2 CAMERA CLEANER HOSE | *4 | REAR WASHER (FROM JOINT TO NOZZLE) HOSE |
| *5 | REAR WASHER NOZZLE | *6 | TELEVISION CAMERA ASSEMBLY WITH NOZZLE |

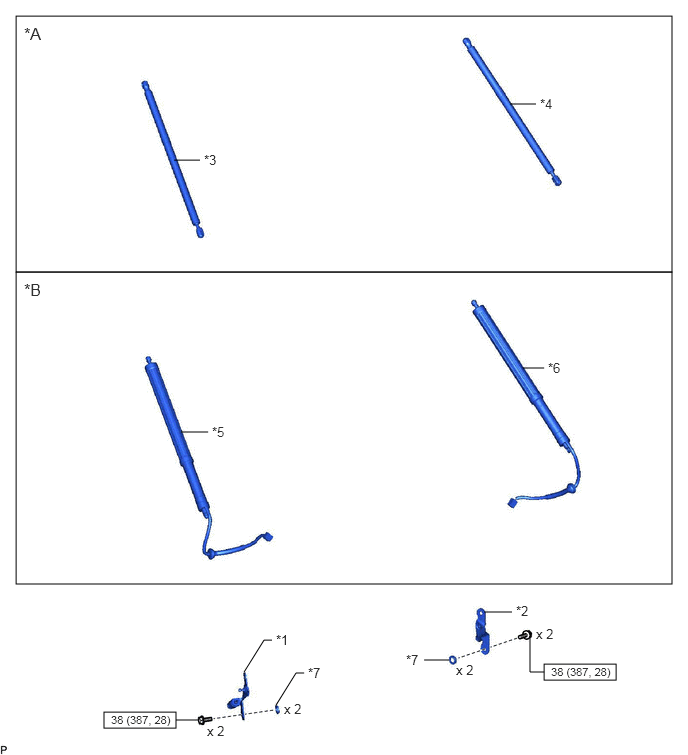

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Power Back Door | *B | w/ Power Back Door |
| *1 | BACK DOOR DAMPER STAY LOWER BRACKET LH | *2 | BACK DOOR DAMPER STAY LOWER BRACKET RH |
| *3 | BACK DOOR STAY ASSEMBLY LH | *4 | BACK DOOR STAY ASSEMBLY RH |
| *5 | POWER BACK DOOR UNIT SET ASSEMBLY LH | *6 | POWER BACK DOOR UNIT SET ASSEMBLY RH |
| *7 | BUSH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
