Components [11/2023 - ]

Fig 1: Back Door Replacement Components With Torque Specifications [11/2023 - ] (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BACK DOOR SERVICE HOLE COVER LH	*2	BACK DOOR SERVICE HOLE COVER RH
*3	BACK DOOR TRIM PANEL ASSEMBLY	*4	CENTER STOP LIGHT ASSEMBLY
*5	CENTER STOP LIGHT COVER	*6	CENTER STOP LIGHT GASKET
*7	DECK TRIM POCKET COVER PLATE	*8	DOOR PULL HANDLE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 2: Back Door Replacement Components With Torque Specifications [11/2023 - ] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR WIPER ARM AND BLADE ASSEMBLY	*2	REAR WIPER ARM HEAD CAP
*3	REAR WIPER MOTOR ASSEMBLY	*4	REAR WIPER MOTOR GROMMET
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

Fig 3: Back Door Replacement Components With Torque Specifications [11/2023 - ] (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 11 Speaker	*B	w/o Power Back Door
*C	w/ Power Back Door	-	-
*1	BACK DOOR FINISH PANEL COVER LH	*2	BACK DOOR FINISH PANEL COVER RH
*3	BACK DOOR LOCK ASSEMBLY	*4	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
*5	BACK DOOR OPENER SWITCH ASSEMBLY	*6	LICENSE PLATE LIGHT ASSEMBLY
*7	NO. 1 BACK DOOR FINISH PANEL PROTECTOR	*8	REAR NO. 3 SPEAKER ASSEMBLY
*9	BUSH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

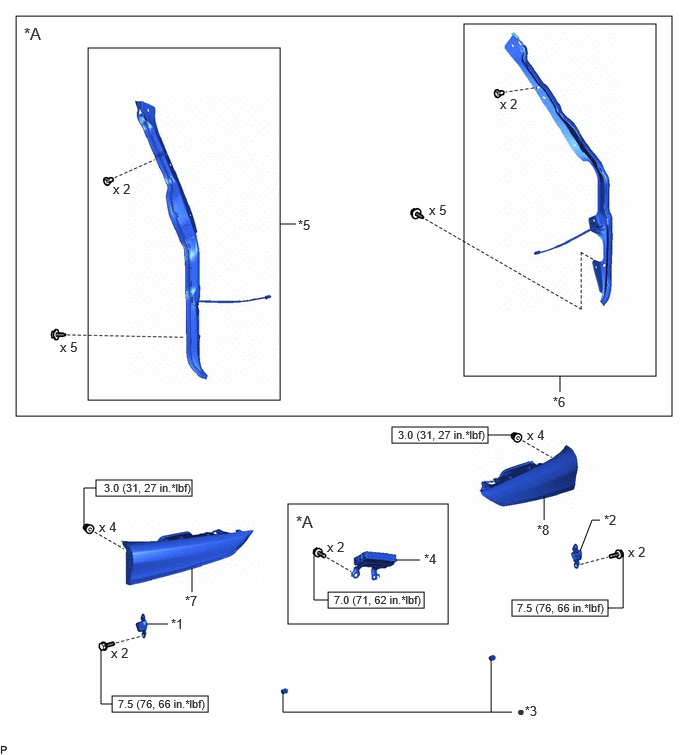

Fig 4: Back Door Replacement Components With Torque Specifications [11/2023 - ] (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Power Back Door	-	-
*1	BACK DOOR LOWER STOPPER LH	*2	BACK DOOR LOWER STOPPER RH
*3	CUSHION	*4	MULTIPLEX NETWORK DOOR ECU
*5	POWER BACK DOOR SENSOR ASSEMBLY LH	*6	POWER BACK DOOR SENSOR ASSEMBLY RH
*7	REAR LIGHT ASSEMBLY LH	*8	REAR LIGHT ASSEMBLY RH
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 5: Back Door Replacement Components [11/2023 - ] (5 Of 6)

Callout	Description	Callout	Description
*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
*1	NO. 1 BACK DOOR WIRE	*2	NO. 1 CAMERA CLEANER HOSE
*3	NO. 2 CAMERA CLEANER HOSE	*4	REAR WASHER (FROM JOINT TO NOZZLE) HOSE
*5	REAR WASHER NOZZLE	*6	TELEVISION CAMERA ASSEMBLY WITH NOZZLE

Fig 6: Back Door Replacement Components With Torque Specifications [11/2023 - ] (6 Of 6)

Callout	Description	Callout	Description
*A	w/o Power Back Door	*B	w/ Power Back Door
*1	BACK DOOR DAMPER STAY LOWER BRACKET LH	*2	BACK DOOR DAMPER STAY LOWER BRACKET RH
*3	BACK DOOR STAY ASSEMBLY LH	*4	BACK DOOR STAY ASSEMBLY RH
*5	POWER BACK DOOR UNIT SET ASSEMBLY LH	*6	POWER BACK DOOR UNIT SET ASSEMBLY RH
*7	BUSH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
