Components [12/2019 - ]

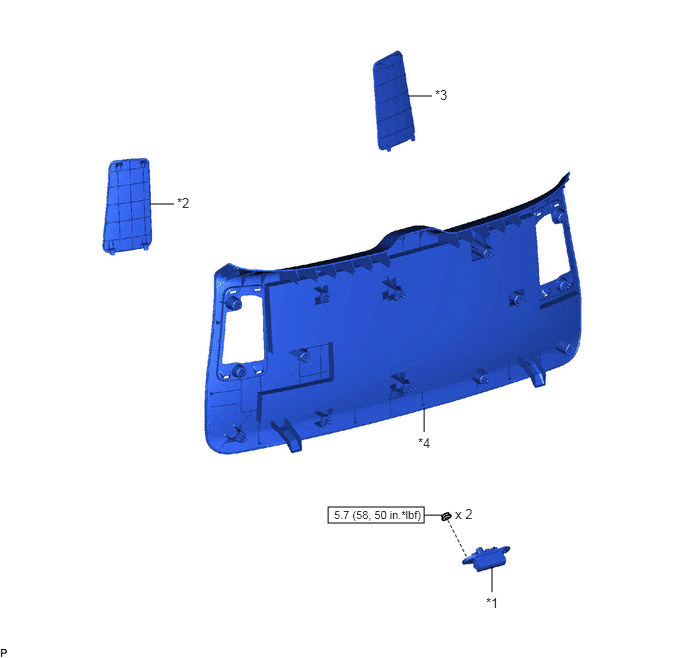

Fig 1: Back Door Opener Switch Replacement Components With Torque Specifications
GTY847492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BACK DOOR OPENER SWITCH ASSEMBLY *2 BACK DOOR SERVICE HOLE COVER LH
*3 BACK DOOR SERVICE HOLE COVER RH *4 BACK DOOR TRIM PANEL ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
