Removal [12/2019 - ]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    See step  5 [12/2019 - 10/2022], or see step  5 [10/2022 - 11/2023], or see step  5 [11/2023 - ]

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  7 [12/2019 - 10/2022], or see step  7 [10/2022 - 11/2023], or see step  7 [11/2023 - ]

  4. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

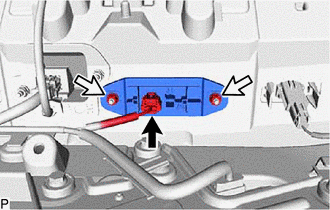

    1. Disconnect the connector.
      GTY892241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and back door opener switch assembly.
