Installation [12/2019 - ]: Procedure

  1. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY

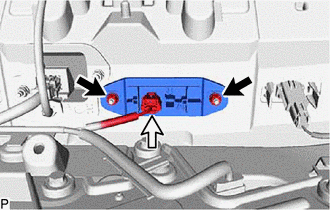

    1. Install the back door opener switch assembly with the 2 nuts.
      GTY892240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.7 N.m (58 kgf/cm, 50 in.lbf)

    2. Connect the connector.
  2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

    See step  35

  3. INSTALL BACK DOOR SERVICE HOLE COVER LH

    See step  36

  4. INSTALL BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.
