Installation [12/2019 - ]: Procedure

  1. INSTALL NO. 1 POWER BACK DOOR CONTROL SWITCH
    1. Connect the connector.

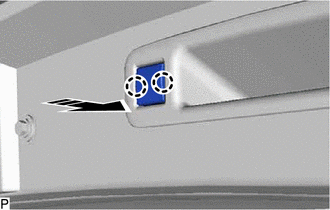

    2. Engage the 2 claws to install the No. 1 power back door control switch as shown in the illustration.
      GTY932248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

    See step  35

  3. INSTALL BACK DOOR SERVICE HOLE COVER LH

    See step  36

  4. INSTALL BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.
