Power Back Door Touch Sensor
>>
Components [12/2019 - ]
Components [12/2019 - ]

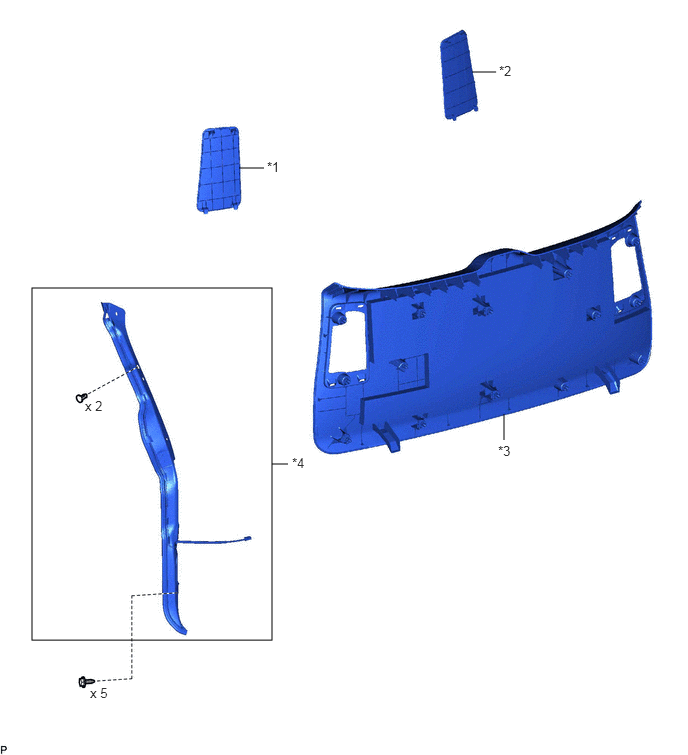

Fig 1: Power Back Door Touch Sensor Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
BACK DOOR SERVICE HOLE COVER LH
*2
BACK DOOR SERVICE HOLE COVER RH
*3
BACK DOOR TRIM PANEL ASSEMBLY
*4
POWER BACK DOOR SENSOR ASSEMBLY
