Inspection [12/2019 - ]: Procedure

  1. INSPECT POWER BACK DOOR SENSOR ASSEMBLY LH
    1. Measure the resistance according to the value(s) in the table below.

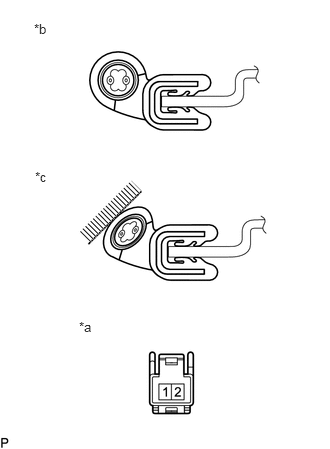

      GTY897140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Power Back Door Sensor Assembly LH)
      *b Not Pressed
      *c Pressed

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Not pressed 950 to 1050 Ω
      1 - 2 Pressed Below 100 Ω

      If the result is not as specified, replace the power back door sensor assembly LH.

  2. INSPECT POWER BACK DOOR SENSOR ASSEMBLY RH
    1. Measure the resistance according to the value(s) in the table below.
      GTY897137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Power Back Door Sensor Assembly RH)
      *b Not Pressed
      *c Pressed

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Not pressed 950 to 1050 Ω
      1 - 2 Pressed Below 100 Ω

      If the result is not as specified, replace the power back door sensor RH.
