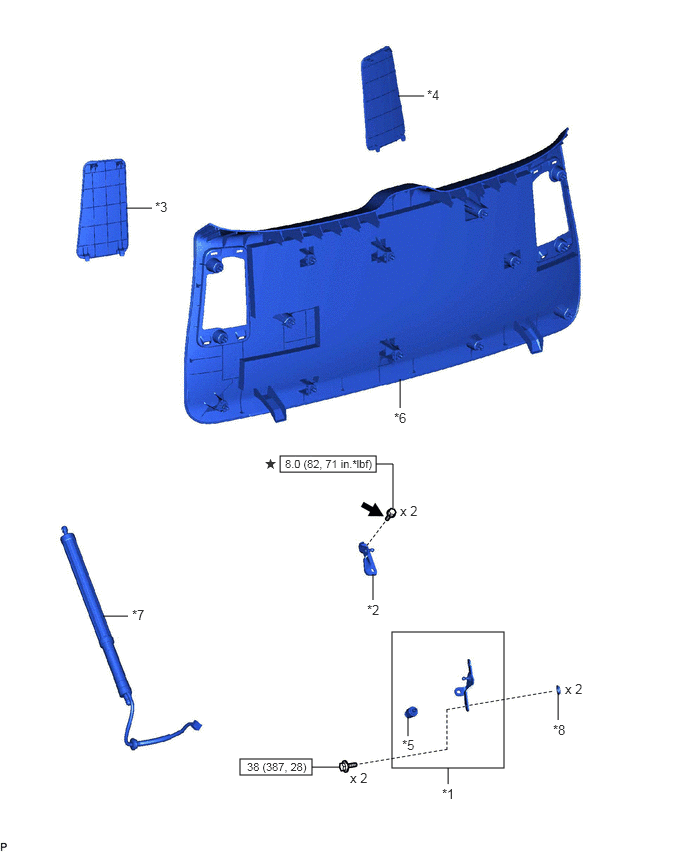

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BACK DOOR DAMPER STAY LOWER BRACKET | *2 | BACK DOOR DAMPER STAY UPPER BRACKET |
| *3 | BACK DOOR SERVICE HOLE COVER LH | *4 | BACK DOOR SERVICE HOLE COVER RH |
| *5 | BACK DOOR STAY STOPPER | *6 | BACK DOOR TRIM PANEL ASSEMBLY |
| *7 | POWER BACK DOOR UNIT SET ASSEMBLY | *8 | BUSH |
|
N.m (kgf/cm, ft.lbf): Specified torque | |
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
| * | Precoated part | - | - |
