Removal [12/2019 - ]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    See step  5 [12/2019 - 10/2022], or see step  5 [10/2022 - 11/2023], or see step  5 [11/2023 - ]

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  7 [12/2019 - 10/2022], or see step  7 [10/2022 - 11/2023], or see step  7 [11/2023 - ]

  4. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY

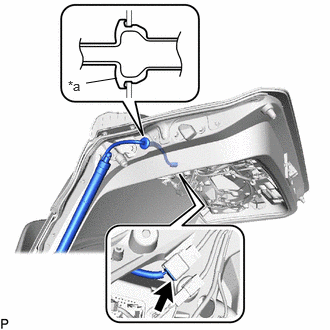

    1. Disconnect the connector.
      GTY854403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet
    2. Disengage the grommet.

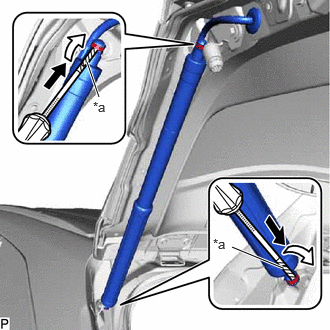

    3. Using a screwdriver with its tip wrapped with protective tape, remove the 2 stop rings as shown in the illustration.
      GTY855286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    4. Disengage the 2 ball joints to remove the power back door unit set assembly.
      NOTE:
      • Remove the power back door unit set assembly while supporting the back door by hand.
      • Make sure to replace the power back door unit set assembly with a new one.
  5. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET

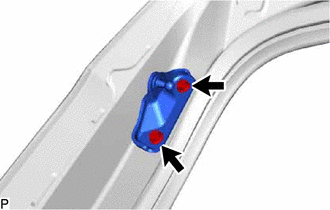

    1. Remove the 2 bolts and back door damper stay upper bracket.
      GTY892345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET

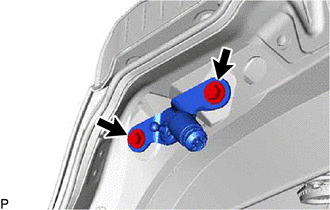

    1. Remove the 2 bolts and back door damper stay lower bracket.
      GTY892340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bushes.
  7. REMOVE BACK DOOR STAY STOPPER

    HINT:

    Perform this procedure only when replacement of the back door stay stopper is necessary.

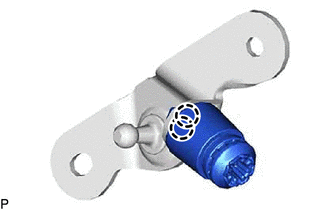

    1. Disengage the 2 claws to remove the back door stay stopper.
      GTY938105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
