Components [11/2023 - ]

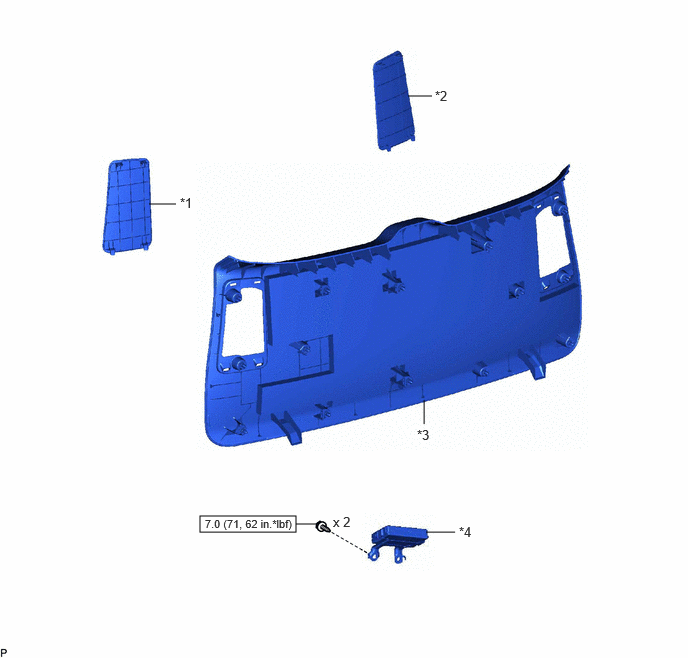

Fig 1: Back Door Closer ECU Replacement Components With Torque Specifications [11/2023 - ]
GTY1177699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BACK DOOR SERVICE HOLE COVER LH *2 BACK DOOR SERVICE HOLE COVER RH
*3 BACK DOOR TRIM PANEL ASSEMBLY *4 MULTIPLEX NETWORK DOOR ECU
N.m (kgf/cm, ft.lbf): Specified torque - -
