Removal [12/2019 - 11/2023]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    See step  5 [12/2019 - 10/2022], or see step  5 [10/2022 - 11/2023]

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  7 [12/2019 - 10/2022], or see step  7 [10/2022 - 11/2023]

  4. REMOVE MULTIPLEX NETWORK DOOR ECU
    1. Remove the 2 bolts.

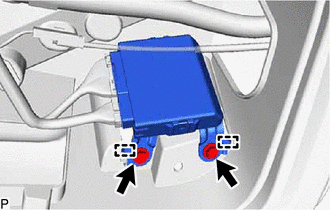

      GTY912271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides.
    3. Disconnect the 2 connectors to remove the multiplex network door ECU.

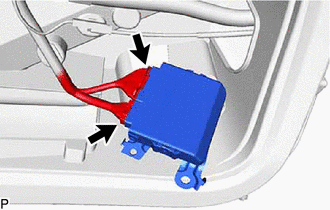

      GTY938110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
