Removal [11/2023 - ]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    See step  5

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    See step  7

  4. REMOVE MULTIPLEX NETWORK DOOR ECU

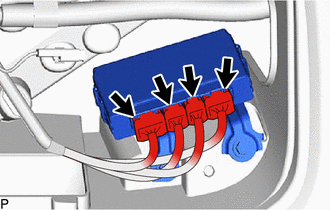

    1. Disconnect the 4 connectors.
      GTY1178274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

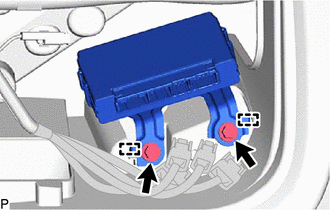

    2. Remove the 2 bolts.
      GTY1178275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the multiplex network door ECU.
