Components [12/2019 - ]

Fig 1: Kick Sensor Replacement Components (1 Of 3)
GTY914794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for HV Model - -
*1 BATTERY SERVICE HOLE COVER - -

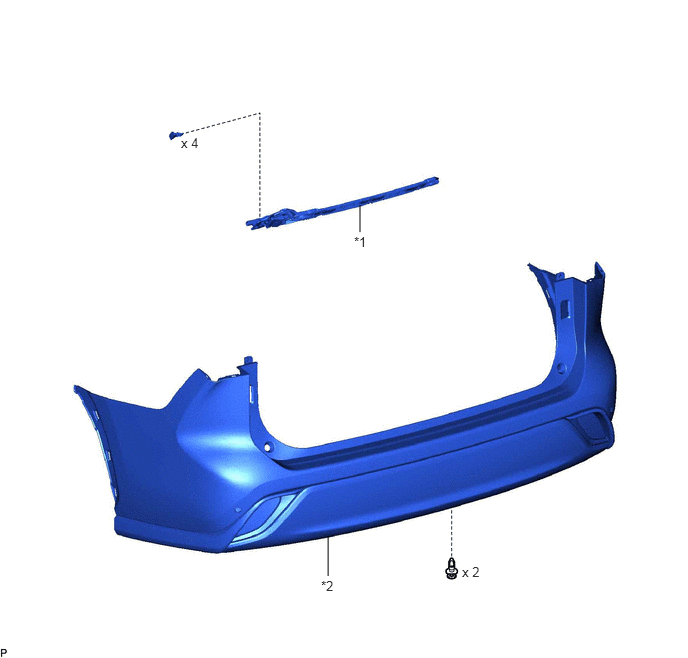

Fig 2: Kick Sensor Replacement Components (2 Of 3)
GTY908541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 KICK DOOR CONTROL SENSOR WITH BRACKET *2 REAR BUMPER ASSEMBLY

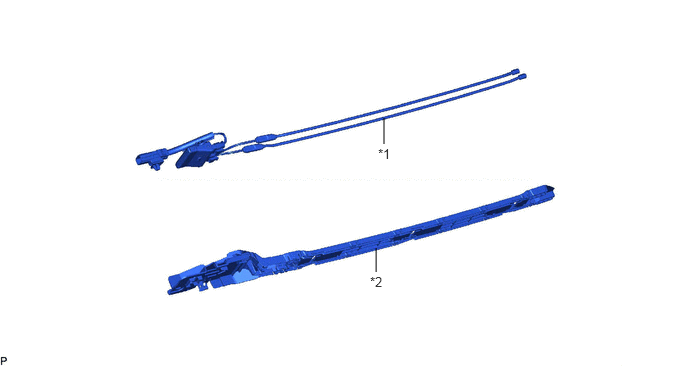

Fig 3: Kick Sensor Replacement Components (3 Of 3)
GTY914251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 KICK DOOR CONTROL SENSOR *2 KICK DOOR CONTROL BRACKET
